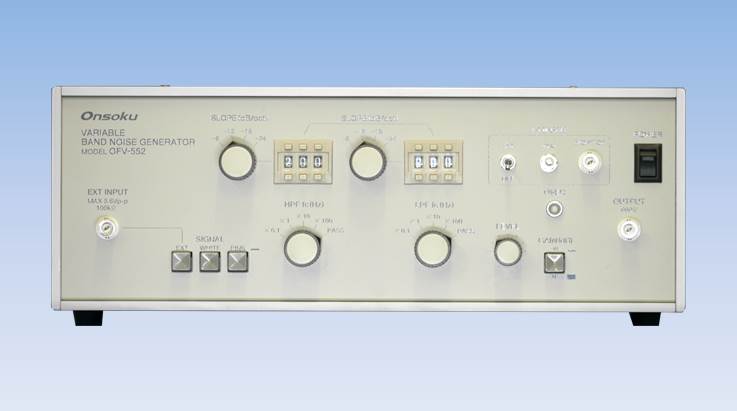

OFV-552 Variable Band Noise Generator

Product Summary

This oscillator is equipped with a high-pass filter and a low-pass filter which are equivalent to those in the OFV-551 Variable Band-pass Filter plus white-noise and pink-noise signal sources.
These provisions make it possible to create desired band noises by using built-in noise sources.

Product specifications

Composition of Filters: A set of high-pass filter and a low-pass filter
Filter Characteristics: Butterworth
Slope: −6, −12, −18, −24 dB/oct, 4 steps
Cut-off Frequency Range: 20 Hz to 20 kHz
Cut-off Frequency: 999 Hz × 0.1, 999 Hz × 1, 999 Hz × 10, and 200 Hz × 100
Input/Output Gain: 2 steps of 0 dB and
20 dB + Variable
Signal Sources:
White noise
Pink noise
External input
Clipper Circuit: Built-in
Settable to ON or OFF
