Audio signal switcher with 10 input channels and 24 output channels.
This product combines a voltmeter switcher with 24 input channels and 1 output channel.
This model measure a voltage, current and electricity of audio signal input to the speaker during load testing and record up to 100h.
The effective value and peak value of the entire recorded data can be displayed, and the audio signal can be played back is synchronization with the recorded waveform.

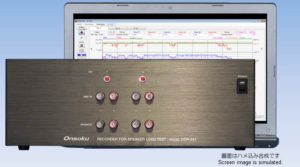

ODR-641 2ch LOAD TEST DATA LOGGER
This model measure a voltage, current, electricity and voice coil temperature of audio signal input to the speaker during load testing and record up to 100h.
The effective value and peak value of the entire recorded data can be displayed, and the audio signal can be played back is synchronization with the recorded wave form.
OT-1018 LOUDSPEAKER TEST RUNNING SYSTEM
Test time, speaker drive voltage, current upper and lower limit settings can be operated from the control PC.Judgment by current upper and lower limit.
* OT-1002 is recommended for easy continuous testing.
Please prepare the signal source and power amplifier separately for the customer.
OT-1002 10ch SPEAKER LOAD TEST TIMER
Model OT-1002 is a timer device for speaker load test. Input signal ON/OFF can be set for each channel.

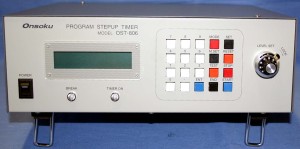

OST-806 PROGRAMMABLE STEP UP TIMER
This vessel, step up does load test signal level and when the speaker is broken step number, indicates voltage and that time.
OST-824 PROGRAMMABLE TIMER
This model is a timer which can optionally preset ON time of a signal, OFF time, and its number of times. Futhermore it is possible for this model to perform ON/OFF test for big load current because it also mounts timer relay. This program timer is very useful for a durability test, a load test, etc.
