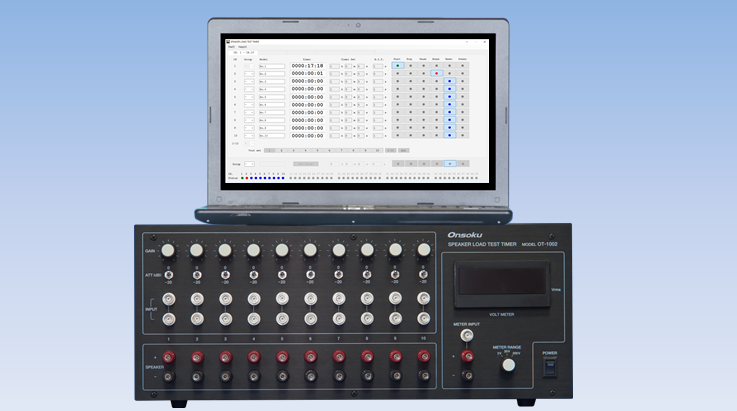

OT-1002 10ch. speaker load test timer

Product Summary

Model OT-1002 is a timer device for speaker load test.Input signal ON/OFF can be set for each channel.
In addition, voice coil disconnection detection,signal supply stop, and disconnection time can be recorded.

The timer time is set from the control PC. Same setting for all channels simultaneous operation or
individual setting individual operation can be set.
After the voice coil disconnection is detected, the input signal and timer are stopped after
the preset interval timer has elapsed.

If disconnection detection returns within the interval timer time,
the timer operation continues.
Up to 5units (50channels) can be added in combination with optional products.
